Version: release-0.8

Connect database in testing environment

Procedure 1. Use kbcli cluster connect command​

You can use the kbcli cluster connect command and specify the cluster name to be connected.

kbcli cluster connect ${cluster-name}

The lower-level command is actually kubectl exec. The command is functional as long as the K8s API server is accessible.

Procedure 2. Connect database with CLI or SDK client​

Execute the following command to get the network information of the targeted database and connect it with the printed IP address.

kbcli cluster connect --show-example ${cluster-name}

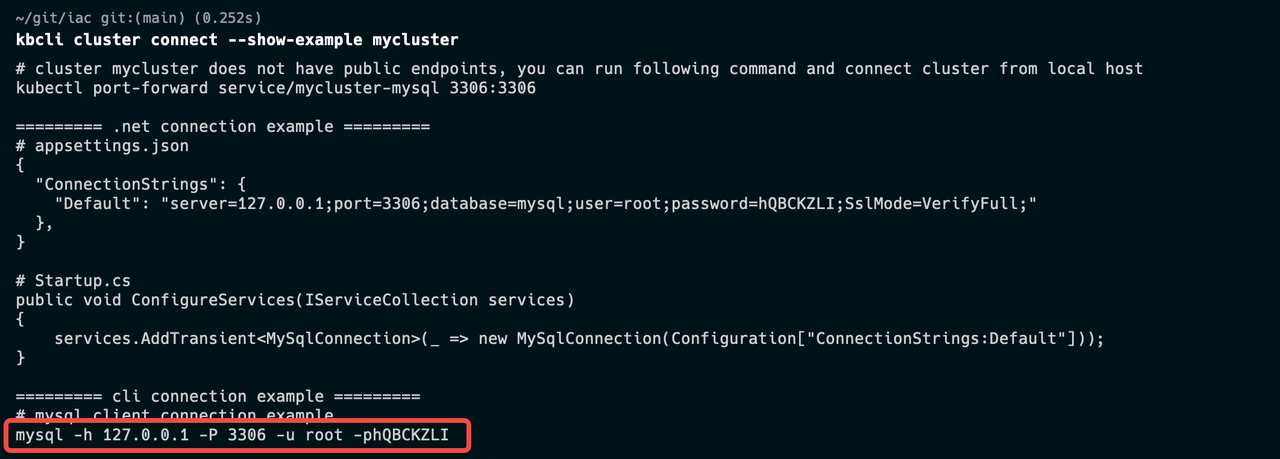

Information printed includes database addresses, port No., username, password. The figure below is an example of MySQL database network information.

  • Address: -h specifies the server address. In the example below it is 127.0.0.1
  • Port: -P specifies port No. , In the example below it is 3306.
  • User: -u is the user name.
  • Password: -p shows the password. In the example below, it is hQBCKZLI.
note

The password does not include -p.

Example
