Kafka Monitoring with Prometheus Operator

This guide demonstrates how to configure comprehensive monitoring for Kafka clusters in KubeBlocks using:

Prometheus Operator for metrics collection
Built-in Kafka exporter for metrics exposure
Grafana for visualization

Prerequisites

Before proceeding, ensure the following:

Environment Setup:
- A Kubernetes cluster is up and running.
- The kubectl CLI tool is configured to communicate with your cluster.
- KubeBlocks CLI and KubeBlocks Operator are installed. Follow the installation instructions here.
Namespace Preparation: To keep resources isolated, create a dedicated namespace for this tutorial:

kubectl create ns demo
namespace/demo created

Install Monitoring Stack

1. Install Prometheus Operator

Deploy the kube-prometheus-stack using Helm:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm install prometheus prometheus-community/kube-prometheus-stack \
  -n monitoring \
  --create-namespace

2. Verify Installation

Check all components are running:

kubectl get pods -n monitoring

Expected Output:

NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          114s
prometheus-grafana-75bb7d6986-9zfkx                      3/3     Running   0          2m
prometheus-kube-prometheus-operator-7986c9475-wkvlk      1/1     Running   0          2m
prometheus-kube-state-metrics-645c667b6-2s4qx            1/1     Running   0          2m
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          114s
prometheus-prometheus-node-exporter-47kf6                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-6ntsl                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-gvtxs                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-jmxg8                1/1     Running   0          2m1s

Deploy a Kafka Cluster

KubeBlocks uses a declarative approach for managing Kafka Clusters. Below is an example configuration for deploying a Kafka Cluster with 3 components

Apply the following YAML configuration to deploy the cluster:

apiVersion: apps.kubeblocks.io/v1
kind: Cluster
metadata:
  name: kafka-separated-cluster
  namespace: demo
spec:
  terminationPolicy: Delete
  clusterDef: kafka
  topology: separated_monitor
  componentSpecs:
    - name: kafka-broker
      replicas: 1
      resources:
        limits:
          cpu: "0.5"
          memory: "0.5Gi"
        requests:
          cpu: "0.5"
          memory: "0.5Gi"
      env:
        - name: KB_KAFKA_BROKER_HEAP
          value: "-XshowSettings:vm -XX:MaxRAMPercentage=100 -Ddepth=64"
        - name: KB_KAFKA_CONTROLLER_HEAP
          value: "-XshowSettings:vm -XX:MaxRAMPercentage=100 -Ddepth=64"
        - name: KB_BROKER_DIRECT_POD_ACCESS
          value: "true"
      volumeClaimTemplates:
        - name: data
          spec:
            storageClassName: ""
            accessModes:
              - ReadWriteOnce
            resources:
              requests:
                storage: 20Gi
        - name: metadata
          spec:
            storageClassName: ""
            accessModes:
              - ReadWriteOnce
            resources:
              requests:
                storage: 1Gi
    - name: kafka-controller
      replicas: 1
      resources:
        limits:
          cpu: "0.5"
          memory: "0.5Gi"
        requests:
          cpu: "0.5"
          memory: "0.5Gi"
      volumeClaimTemplates:
        - name: metadata
          spec:
            storageClassName: ""
            accessModes:
              - ReadWriteOnce
            resources:
              requests:
                storage: 1Gi
    - name: kafka-exporter
      replicas: 1
      resources:
        limits:
          cpu: "0.5"
          memory: "1Gi"
        requests:
          cpu: "0.1"
          memory: "0.2Gi"

NOTE

These three components will be created strictly in controller->broker->exporter order as defined in ClusterDefinition.

Verifying the Deployment

Monitor the cluster status until it transitions to the Running state:

kubectl get cluster kafka-separated-cluster -n demo -w

Expected Output:

kubectl get cluster kafka-separated-cluster -n demo
NAME                      CLUSTER-DEFINITION   TERMINATION-POLICY   STATUS     AGE
kafka-separated-cluster   kafka                Delete               Creating   13s
kafka-separated-cluster   kafka                Delete               Running    63s

Check the pod status and roles:

kubectl get pods -l app.kubernetes.io/instance=kafka-separated-cluster -n demo

Expected Output:

NAME                                         READY   STATUS    RESTARTS   AGE
kafka-separated-cluster-kafka-broker-0       2/2     Running   0          13m
kafka-separated-cluster-kafka-controller-0   2/2     Running   0          13m
kafka-separated-cluster-kafka-exporter-0     1/1     Running   0          12m

Once the cluster status becomes Running, your Kafka cluster is ready for use.

TIP

If you are creating the cluster for the very first time, it may take some time to pull images before running.

Configure Metrics Collection

1. Get Exporter details

kubectl get po -n demo kafka-separated-cluster-kafka-broker-0 -oyaml | yq '.spec.containers[] | select(.name=="jmx-exporter") | .ports'

Example Output:

- containerPort: 5556
  name: metrics
  protocol: TCP

  kubectl get po -n demo  kafka-separated-cluster-kafka-exporter-0 -oyaml | yq '.spec.containers[] | select(.name=="kafka-exporter") | .ports'

Example Output:

- containerPort: 9308
  name: metrics
  protocol: TCP

2. Verify Exporter Endpoint

Check jmx-exporter:

kubectl -n demo exec -it pods/kafka-separated-cluster-kafka-broker-0  -- \
    curl -s http://127.0.0.1:5556/metrics | head -n 50

Check kafka-exporter:

kubectl -n demo exec -it pods/kafka-separated-cluster-kafka-broker-0  -- \
  curl -s http://kafka-separated-cluster-kafka-exporter-0.kafka-separated-cluster-kafka-exporter-headless.demo.svc:9308/metrics | head -n 50

2. Create PodMonitor

apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: kafka-jmx-pod-monitor
  namespace: demo
  labels:               # match labels in `prometheus.spec.podMonitorSelector`
    release: prometheus
spec:
  jobLabel: app.kubernetes.io/managed-by
  # defines the labels which are transferred from the
  # associated Kubernetes `Pod` object onto the ingested metrics
  # set the lables w.r.t you own needs
  podTargetLabels:
  - app.kubernetes.io/instance
  - app.kubernetes.io/managed-by
  - apps.kubeblocks.io/component-name
  - apps.kubeblocks.io/pod-name
  podMetricsEndpoints:
    - path: /metrics
      port: metrics
      scheme: http
  namespaceSelector:
    matchNames:
      - demo
  selector:
    matchLabels:
      app.kubernetes.io/instance: kafka-separated-cluster

PodMonitor Configuration Guide

Parameter	Required	Description
`port`	Yes	Must match exporter port name ('http-metrics')
`namespaceSelector`	Yes	Targets namespace where Kafka runs
`labels`	Yes	Must match Prometheus's podMonitorSelector
`path`	No	Metrics endpoint path (default: /metrics)
`interval`	No	Scraping interval (default: 30s)

Verify Monitoring Setup

1. Check Prometheus Targets

Forward and access Prometheus UI:

kubectl port-forward svc/prometheus-kube-prometheus-prometheus -n monitoring 9090:9090

Open your browser and navigate to: http://localhost:9090/targets

Check if there is a scrape job corresponding to the PodMonitor (the job name is 'demo/kafka-separated-cluster-pod-monitor').

Expected State:

The State of the target should be UP.
The target's labels should include the ones defined in podTargetLabels (e.g., 'app_kubernetes_io_instance').

2. Test Metrics Collection

Verify metrics are being scraped:

curl -sG "http://localhost:9090/api/v1/query" --data-urlencode 'query=up{app_kubernetes_io_instance="kafka-separated-cluster"}' | jq

Example Output:

{
  "status": "success",
  "data": {
    "resultType": "vector",
    "result": [
      {
        "metric": {
          "__name__": "up",
          "app_kubernetes_io_instance": "kafka-separated-cluster",
          "app_kubernetes_io_managed_by": "kubeblocks",
          "apps_kubeblocks_io_component_name": "kafka-broker",
          "apps_kubeblocks_io_pod_name": "kafka-separated-cluster-kafka-broker-2",
          "container": "jmx-exporter",
          "endpoint": "metrics",
          "instance": "10.244.0.236:5556",
          "job": "kubeblocks",
          "namespace": "demo",
          "pod": "kafka-separated-cluster-kafka-broker-2"
        },
        "value": [
          1747654851.995,
          "1"
        ]
      },
... // more lines ommited

Visualize in Grafana

1. Access Grafana

Port-forward and login:

kubectl port-forward svc/prometheus-grafana -n monitoring 3000:80

Open your browser and navigate to http://localhost:3000. Use the default credentials to log in:

Username: 'admin'
Password: 'prom-operator' (default)

2. Import Dashboard

Import the KubeBlocks Kafka dashboard:

In Grafana, navigate to "+" → "Import"
Import dashboard from Grafana Kafka Dashboard

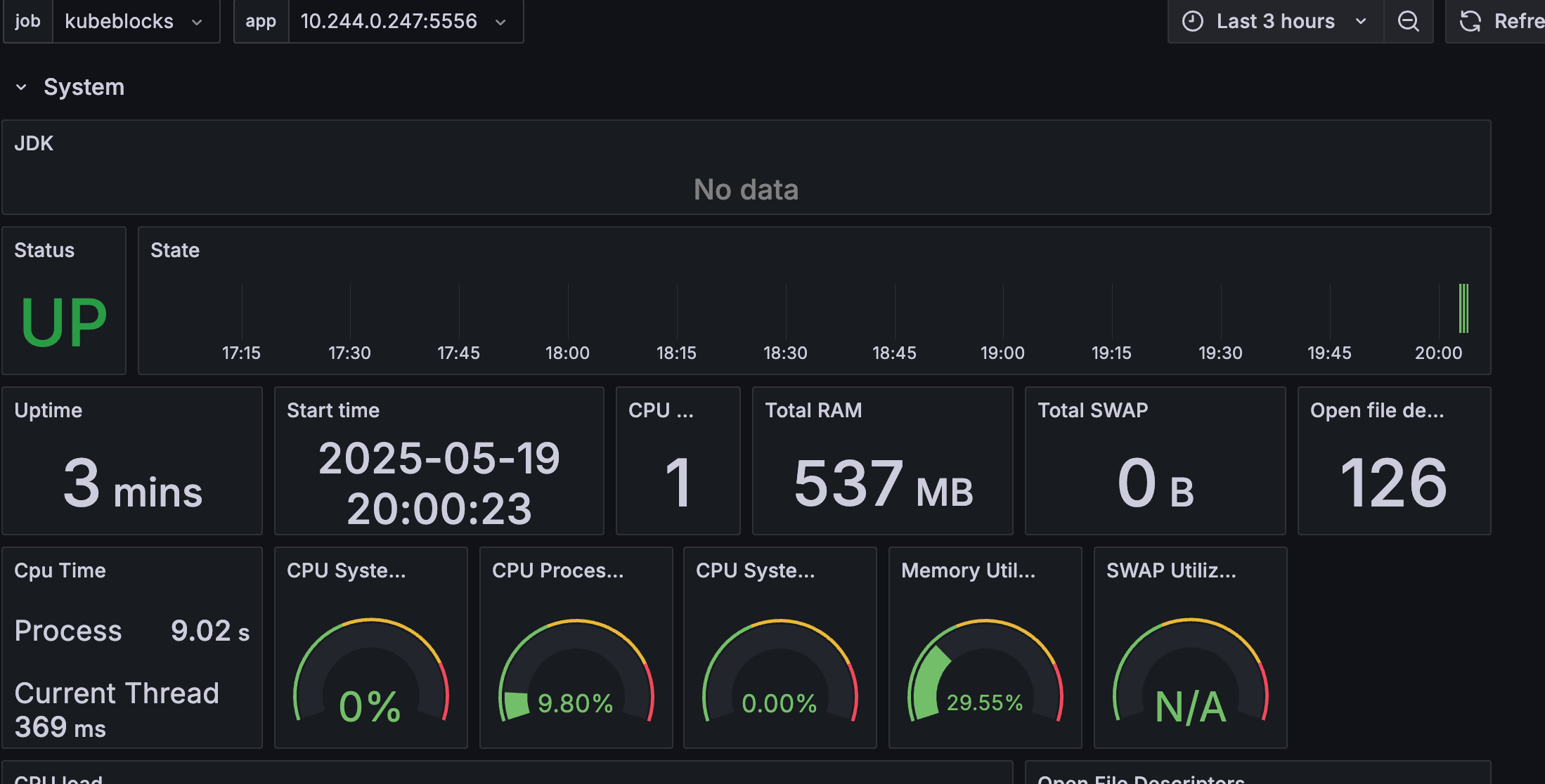

Figure 1. Kakfa jmx dashboard

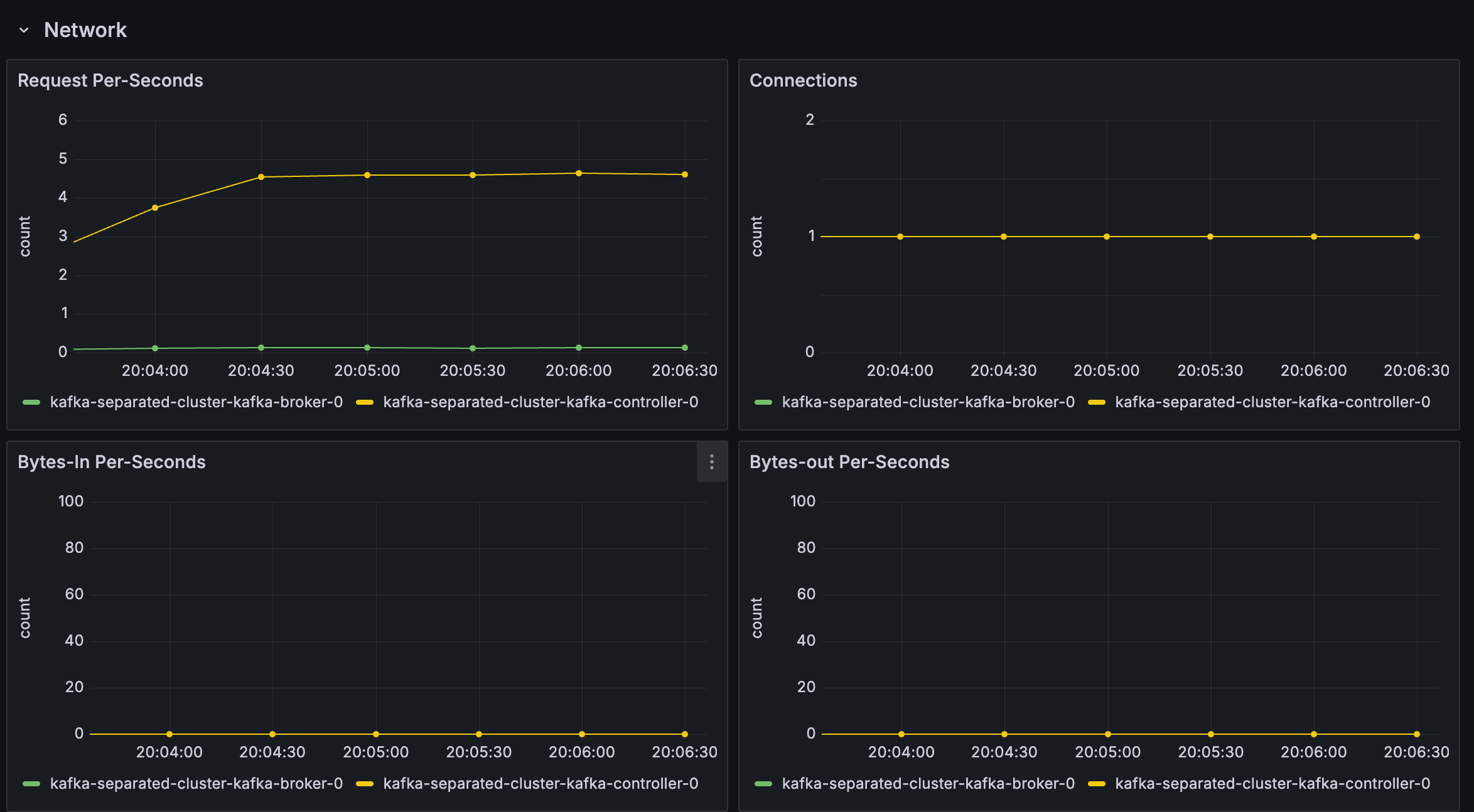

Figure 2. Kafka exporter dashboard

Delete

To delete all the created resources, run the following commands:

kubectl delete cluster kafka-separated-cluster -n demo
kubectl delete ns demo
kubectl delete podmonitor kafka-separated-cluster-pod-monitor -n demo

Summary

In this tutorial, we set up observability for a Kafka cluster in KubeBlocks using the Prometheus Operator. By configuring a PodMonitor, we enabled Prometheus to scrape metrics from the Kafka exporter. Finally, we visualized these metrics in Grafana. This setup provides valuable insights for monitoring the health and performance of your Kafka databases.
