High availability

KubeBlocks integrates the official Redis Sentinel solution to realize high availability and adopts Noop as the switch policy.

Redis Sentinel is the high availability solution for a Redis Replication Cluster, which is recommended by Redis and is also the main-stream solution in the community.

In the Redis Replication Cluster provided by KubeBlocks, Sentinel is deployed as an independent component.

Before you start

• Install KubeBlocks by kbcli or by Helm.

• Create a Redis Replication Cluster.

• Check the Switch Policy and the role probe.

  • Check whether the switch policy is Noop.

    kubectl get cluster redis-cluster -o yaml
    >
    spec:
      componentSpecs:
      - name: redis
        componentDefRef: redis
        switchPolicy:
          type: Noop

  • Check whether the following role probe parameters exist to verify the role probe is enabled.

    kubectl get cd redis -o yaml
    >
    probes:
      roleProbe:
        failureThreshold: 2
        periodSeconds: 2
        timeoutSeconds: 1

Steps

kbcli

This section takes the cluster redis-cluster in the namespace default as an example.

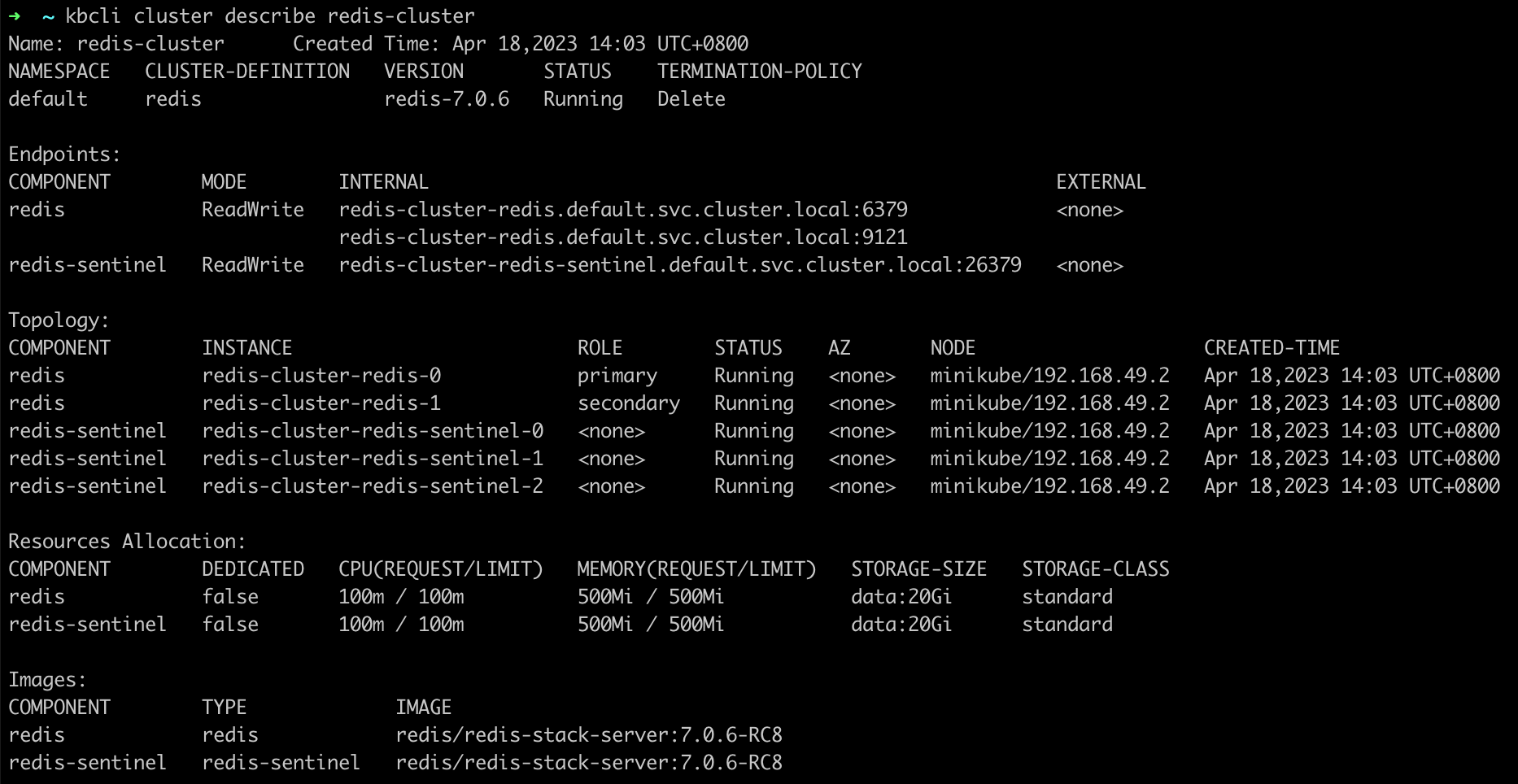

1. View the initial status of the Redis cluster.

   kbcli cluster describe redis-cluster



   Currently, redis-cluster-redis-0 is the primary pod and redis-cluster-redis-1 is the secondary pod.

2. Simulate a primary pod exception.

   # Enter the primary pod
   kubectl exec -it redis-cluster-redis-0  -- bash

   # Execute the debug sleep command to simulate a primary pod exception
   root@redis-redis-0:/# redis-cli debug sleep 30

3. Open the Redis Sentinel log to view the failover.

   kubectl logs redis-cluster-redis-sentinel-0

   In the logs, we can view when a high-availability switch occurs.

   1:X 18 Apr 2023 06:13:17.072 # +switch-master redis-cluster-redis-sentinel redis-cluster-redis-0.redis-cluster-redis-headless.default.svc 6379 redis-cluster-redis-1.redis-cluster-redis-headless.default.svc 6379
   1:X 18 Apr 2023 06:13:17.074 * +slave slave redis-cluster-redis-0.redis-cluster-redis-headless.default.svc:6379 redis-cluster-redis-0.redis-cluster-redis-headless.default.svc 6379 @ redis-cluster-redis-sentinel redis-cluster-redis-1.redis-cluster-redis-headless.default.svc 6379
   1:X 18 Apr 2023 06:13:17.077 * Sentinel new configuration saved on disk

4. Connect to the Redis cluster to view the primary pod information after the exception simulation.

   kbcli cluster connect redis-cluster

   # View the current primary pod

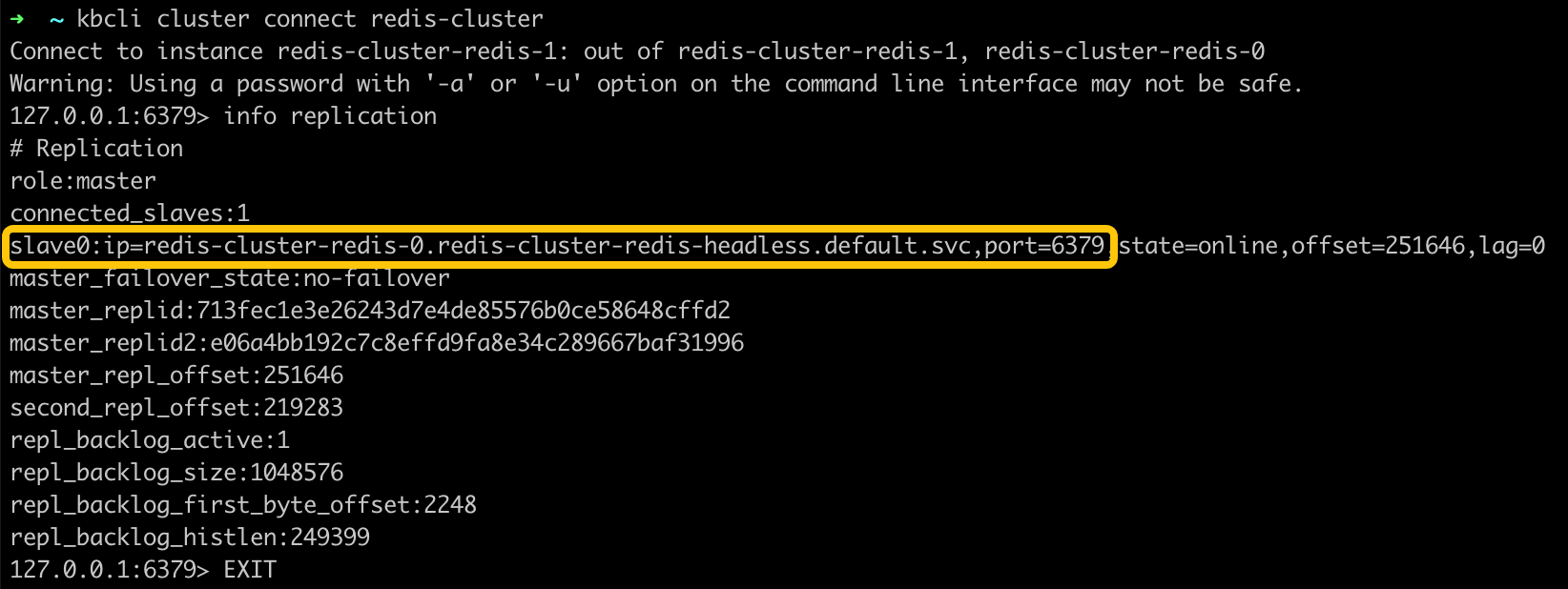

   127.0.0.1:6379> info replication



   From the output, redis-cluster-redis-1 has been assigned as the primary's pod.

5. Describe the cluster and check the instance role.

   kbcli cluster describe redis-cluster



   After the failover, redis-cluster-redis-0 becomes the secondary pod and redis-cluster-redis-1 becomes the primary pod.

kubectl

This section takes the cluster mycluster in the namespace demo as an example.

1. View the initial status of the Redis cluster.

   kubectl get pods -l kubeblocks.io/role=primary -n demo
   >
   NAME                READY   STATUS    RESTARTS   AGE
   mycluster-redis-0   3/3     Running   0          24m

   kubectl get pods -l kubeblocks.io/role=secondary -n demo
   >
   NAME                READY   STATUS    RESTARTS      AGE
   mycluster-redis-1   3/3     Running   1 (24m ago)   24m

   Currently, mycluster-redis-0 is the primary pod and mycluster-redis-1 is the secondary pod.

   note

   To fetch a more complete output, you can modify the -o parameter.

   kubectl get pods  -o custom-columns=NAME:.metadata.name,ROLE_LABEL:.metadata.labels."kubeblocks\.io/role"

2. Simulate a primary pod exception.

   # Enter the primary pod
   kubectl exec -ti -n demo mycluster-redis-0 -- bash

   # Execute the debug sleep command to simulate a primary pod exception
   root@mycluster-redis-0:/# redis-cli debug sleep 30

3. Open the Redis Sentinel log to view the failover.

   kubectl logs mycluster-redis-sentinel-0 -n demo

   In the logs, we can view when a high-availability switch occurs.

   1:X 18 Apr 2023 06:13:17.072 # +switch-master mycluster-redis-sentinel mycluster-redis-0.mycluster-redis-headless.default.svc 6379 mycluster-redis-1.mycluster-redis-headless.default.svc 6379
   1:X 18 Apr 2023 06:13:17.074 * +slave slave mycluster-redis-0.mycluster-redis-headless.default.svc:6379 mycluster-redis-0.mycluster-redis-headless.default.svc 6379 @ mycluster-redis-sentinel mycluster-redis-1.mycluster-redis-headless.default.svc 6379
   1:X 18 Apr 2023 06:13:17.077 * Sentinel new configuration saved on disk

4. Connect to the Redis cluster to view the primary pod information after the exception simulation.

   127.0.0.1:6379> info replication

   Now mycluster-redis-1 has been assigned as the primary's pod.

5. Describe the cluster and check the instance role.

   kubectl get pods -l kubeblocks.io/role=primary -n demo
   kubectl get pods -l kubeblocks.io/role=secondary -n demo

   After the failover, mycluster-redis-0 becomes the secondary pod and mycluster-redis-1 becomes the primary pod.
