In KubeBlocks, an instance is the fundamental unit, composed of a Pod and other auxiliary objects. To make it simple, you can think of it as just a Pod, but we'll refer to it as an "instance" throughout the text.
InstanceSet is a general workload API responsible for managing a group of instances. All workloads in KubeBlocks are ultimately managed through InstanceSet.
Compared to K8s native workload APIs like StatefulSet and Deployment, InstanceSet incorporates additional features and design considerations specifically related to databases, such as roles and high availability. This makes it much more capable of supporting complex stateful workloads like databases.
How to use InstanceSet?
InstanceSet generates a fixed name for each instance it manages and creates a Headless Service, giving each instance a stable network identifier. With this identifier, instances within the same InstanceSet can find each other, and other systems within the same Kubernetes cluster can also find each instance under this InstanceSet.
InstanceSet uses VolumeClaimTemplates to generate storage volumes with fixed identifiers for each instance. Other instances or systems can locate an instance through its fixed identifier and access the data stored in its volume.
When it comes to updates, InstanceSet supports RollingUpdate for all instances in a deterministic order, and you can configure various behaviors for the rolling updates. Similarly, during horizontal scaling, InstanceSet adds or removes instances in a deterministic order.
Building on these basic features, to meet the demands of supporting high availability in databases, InstanceSet further supports more features like in-place update, instance template, taking specified instance offline, role-based services, and role-based update strategies.
Let's delve into these features in more detail below.
How to generate an instance name?
InstanceSet renders instance objects by using an instance template, with the number of instances controlled by the Replicas field.
apiVersion: workloads.kubeblocks.io/v1alpha1
kind: InstanceSet
metadata:
name: mydb
spec:
replicas: 3
template:
spec:
terminationGracePeriodSeconds: 10
containers:
- name: mydb
image: registry.kubeblocks.io/mydb:15.1
ports:
- containerPort: 5123
name: db
volumeMounts:
- name: data
mountPath: /var/mydb/
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "my-storage-class"
resources:
requests:
storage: 10Gi
In the example above, an InstanceSet named mydb is declared, consisting of three instances (replicas=3). Each instance is rendered from an instance template made up of template and volumeClaimTemplates. The template is used to render the Pod within the instance, while volumeClaimTemplates are used to render the PVC within the instance.
The pattern for generating instance names is $(instanceSet.name)-$(instanceID). By default, instanceID is an ordinal value. In this example, instanceSet.name is mydb, and the ordinal starts from 0, incrementing with each instance. The resulting instance names are: mydb-0, mydb-1, and mydb-2. When using the multi-instance template feature, the instanceID generation rule expands to $(template.name)-$(ordinal). For more details, refer to the instance template documentation.
To provide a fixed network identifier, each InstanceSet generates a Headless Service object. The name pattern for this Service is $(instanceSet.name)-headless. In this example, the final Headless Service name is mydb-headless. Through this pattern, three instances under this InstanceSet gain three fixed network identities: mydb-0.mydb-headless.default.local, mydb-1.mydb-headless.default.local, and mydb-2.mydb-headless.default.local.
Since the InstanceSet name becomes part of the fixed network identifier, it must conform to the DNS Label standard.
How to get instances under an instanceSet?
When InstanceSet generates secondary resources, it adds two labels to them: workloads.kubeblocks.io/managed-by=InstanceSet and workloads.kubeblocks.io/instance=<instanceSet.name>. These labels can be used to get all secondary resources under a specific InstanceSet, including Pods and PVCs.
In the example above, the labels to get the corresponding Pods would be:
workloads.kubeblocks.io/managed-by=InstanceSetworkloads.kubeblocks.io/instance=mydb
If you want to customize the labels used to get Pods under an InstanceSet, you can do so by setting the spec.selector field. For example:
apiVersion: workloads.kubeblocks.io/v1alpha1
kind: InstanceSet
metadata:
name: mydb
spec:
selector:
matchLabels:
db: mydb
Labels set via spec.selector's MatchLabels will be automatically added to the Pods generated by the InstanceSet.
Create/Delete an instance
By default, InstanceSet creates instances in an ascending order. When creating a new instance, the Pod of the previous instance must reach the Ready status before the next one is generated.
Deleting an instance follows the opposite order. Before deleting an instance, the Pod within it must be in the Ready status. The main consideration here is that if a Pod is not Ready, there might be problems with the data in its attached PVC. InstanceSet ensures that no further actions are taken until data issues are resolved.
InstanceSet also uses the creation logic for both the initial setup and horizontal scaling up. Conversely, the deletion logic is applied during horizontal scaling down.
InstanceSet also supports configuring instance creation and deletion strategies via the spec.podManagementPolicy. Currently, two strategies are supported: Ordered (the default) and Parallel. The Parallel strategy allows for the simultaneous creation or deletion of instances.
Scale down specified instances
In some scenarios, you may need to delete specific instances during a scale-down operation.
For example, if a Node needs to be offloaded due to a physical machine failure, all instances (Pods) on that Node should be deleted. This can be achieved through the specified instance scale-down feature.
Using the earlier example of the mydb InstanceSet, you could scale down by deleting the instance with ordinal 1 while keeping the instances with ordinals 0 and 2:
apiVersion: workloads.kubeblocks.io/v1alpha1
kind: InstanceSet
metadata:
name: mydb
spec:
replicas: 2
offlineInstances: ["mydb-1"]
# ...
For more detailed instructions, refer to the offloading specified instance feature.
Update an instance
When fields in the instance template updates, all instances under the InstanceSet will also be updated.
By default, InstanceSet updates each instance sequentially in descending order. Before updating an instance, the previous instance must have already been updated and reached the Ready status.
If the instances are granted with roles (which will be discussed in the following sections), InstanceSet updates them according to their role priorities, starting from the lowest to the highest. If the role priorities are the same, the instances are updated further in descending ordinal order.
InstanceSet supports more update behaviors by configuring spec.updateStrategy. For example, you can control the total number of instances to be updated using spec.updateStrategy.rollingUpdate.partition and manage the maximum number of unavailable instances during the update process with spec.updateStrategy.rollingUpdate.maxUnavailable. For more details, refer to the spec.updateStrategy API documentation.
In-place update
Applications often have high availability requirements for databases. Typically, when a Pod is updated, the action taken is to recreate it, which takes some time and can result in temporary unavailability of the database service.
To minimize the impact of updates on database service availability, InstanceSet supports in-place updates. When certain fields in the instance template are updated, InstanceSet updates the Pod or scales the PVC in place, ensuring minimal disruption to the instance.
In principle, the in-place update capability leverages the in-place update feature of Kubernetes native Pod API. The specific fields supported are as follows:
spec.template.metadata.annotationsspec.template.metadata.labelsspec.template.spec.activeDeadlineSecondsspec.template.spec.initContainers[*].imagespec.template.spec.containers[*].imagespec.template.spec.tolerations(Only adds Toleration)spec.instances[*].annotationsspec.instances[*].labelsspec.instances[*].image
Starting from Kubernetes v1.27, the PodInPlaceVerticalScaling feature gate can be enabled to further support in-place updates for CPU and memory. InstanceSet automatically detects the Kubernetes version and feature gate status and provides additional support for the following fields:
For Kubernetes 1.27 and later, with PodInPlaceVerticalScaling enabled, the following fields support in-place updates:
spec.template.spec.containers[*].resources.requests["cpu"]spec.template.spec.containers[*].resources.requests["memory"]spec.template.spec.containers[*].resources.limits["cpu"]spec.template.spec.containers[*].resources.limits["memory"]spec.instances[*].resources.requests["cpu"]spec.instances[*].resources.requests["memory"]spec.instances[*].resources.limits["cpu"]spec.instances[*].resources.limits["memory"]
For PVCs, InstanceSet also leverages the PVC API's capabilities and only supports volume expansion.
For more details, refer to the in-place update feature.
Instance templates
By default, InstanceSet generates all instances from a single template.
In some scenarios, you may need instances with different configurations within the same InstanceSet, such as varying resource allocations or environment variables. InstanceSet supports defining additional instance templates on top of the default template to accommodate these needs.
Using the previously mentioned mydb InstanceSet as an example, if you want to configure it with one large primary instance and two smaller secondary instances, you can configure this cluster as follows:
apiVersion: workloads.kubeblocks.io/v1alpha1
kind: InstanceSet
metadata:
name: mydb
spec:
replicas: 3
template:
spec:
terminationGracePeriodSeconds: 10
containers:
- name: mydb
image: registry.kubeblocks.io/mydb:15.1
ports:
- containerPort: 5123
name: db
volumeMounts:
- name: data
mountPath: /var/mydb/
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "my-storage-class"
resources:
requests:
storage: 10Gi
instances:
- name: primary
replicas: 1
resources:
limits:
cpu: 8
memory: 16Gi
- name: secondary
replicas: 2
resources:
limits:
cpu: 4
memory: 8Gi
For more detailed instructions, refer to the instance template feature.
Roles
Most database systems support multi-instance deployments, where each instance assumes a different role, typically determined by their internal data replication relationships. For example, in PostgreSQL, there are Primary and Secondary roles, while in etcd, there are roles like leader, follower, and learner.
In a database system, instances with different roles often have distinct characteristics. For example, in terms of service capabilities, the primary node usually supports read and write capabilities, while other nodes provide read-only capabilities. During operations, following best practices for managing database, the secondary instances are typically upgraded one by one first, with the primary instance upgraded last. Before upgrading the primary instance, a switchover is usually performed to ensure data integrity and minimize service downtime.
For these characteristics, InstanceSet includes several features related to database roles. These role-related features include role definition, role detection, role-based services, and role-based update strategies.
Role definition describes the roles in the system and their attributes.
Role detection periodically checks each instance's role using configured detection methods and updates the corresponding instance's label accordingly.
Role-based services allow services to filter specific roles based on each instance's role label, enabling appropriate service capabilities.
Role-based update strategies determine the update sequence of instances based on role priority.
Role definition
InstanceSet allows defining all role information through spec.roles, including role names, read/write capabilities, whether they participate in elections, and whether they are the leader.
For example, PostgreSQL can be configured as follows:
spec:
roles:
- name: "primary"
accessMode: ReadWrite
isLeader: true
- name: "secondary"
accessMode: Readonly

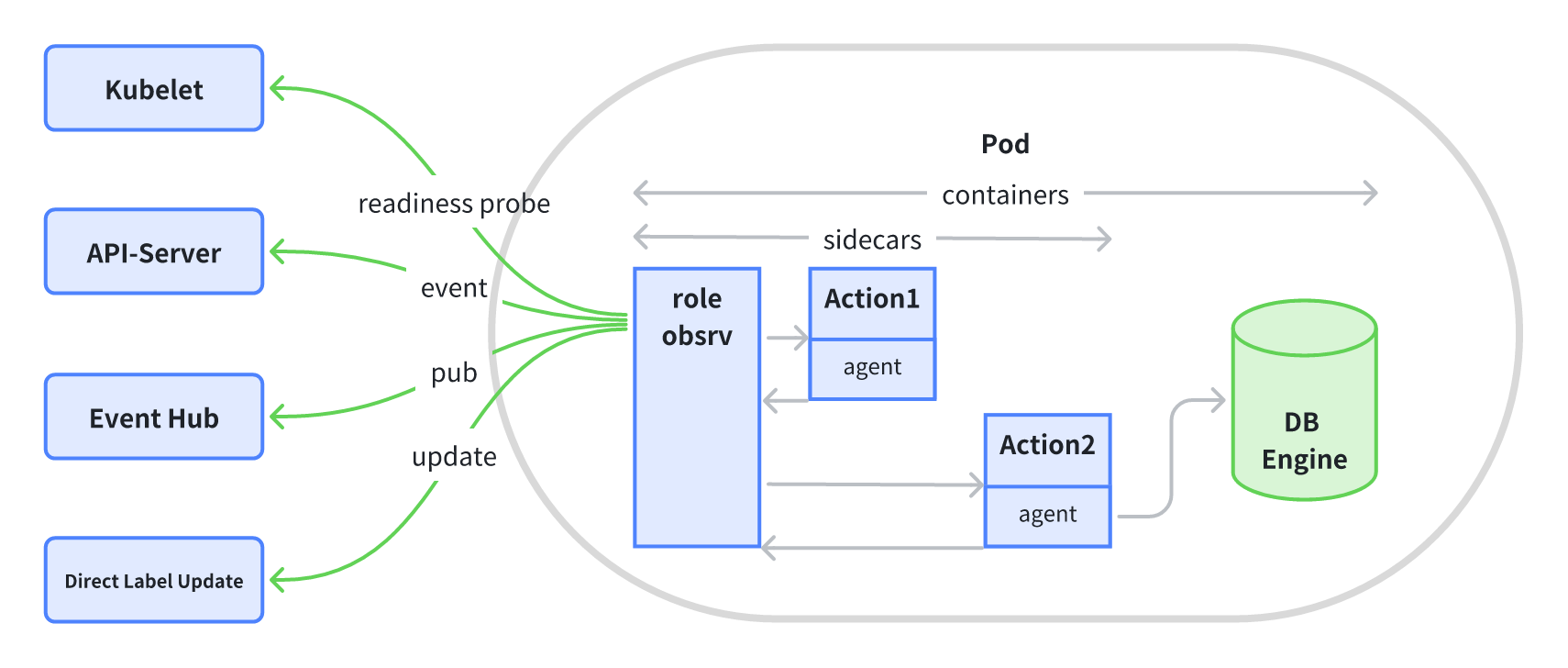

Role detection
InstanceSet includes a preconfigured role detection Sidecar that periodically executes a configured role detection script and works with the InstanceSet Controller to update the role name in the corresponding instance's label.
The role detection script can be configured as follows:
spec:
roleProbe:
customHandler:
- image: probe.kubeblocks.io/sample-probe:1.0
cmd: ["probe"]
args: ["redis"]
periodSeconds: 5
roleUpdateMechanism: DirectAPIServerEventUpdate
In this example, the configured role detection Sidecar runs the probe command in the sample-probe image every 5 seconds and sends the detection results encapsulated in a K8s Event to the InstanceSet Controller. Upon receiving this event, the InstanceSet Controller parses each instance's role information and updates it in the instance's role label. The role label format is: kubeblocks.io/role=<role.name>. The InstanceSet Controller also updates the instance's read/write capability in the label with the format: workloads.kubeblocks.io/access-mode=<role.accessMode>.
Role-based services
By configuring the Service's selector to match different role labels and read/write capability labels on instances, the Service can provide different service capabilities.
For example, the read/write service for PostgreSQL can be configured as follows:
apiVersion: v1
kind: Service
metadata:
name: pg-readwrite-svc
spec:
selector:
workloads.kubeblocks.io/managed-by: InstanceSet
workloads.kubeblocks.io/instance: mydb
kubeblocks.io/role: primary
Role-based update strategies
As mentioned earlier, when updating instances, InstanceSet considers role priorities once roles are configured.
Specifically, InstanceSet supports three role update strategies through spec.memberUpdateStrategy: Serial, Parallel, and BestEffortParallel.
Serial updates instances sequentially from low to high role priority. If two instances have the same role priority, they are updated further in descending ordinal order.
Parallel updates all instances simultaneously, following the update strategy specified in spec.updateStrategy.
BestEffortParallel updates instances in batches based on role priority from low to high, while ensuring system availability. This strategy also follows the update strategy specified in spec.updateStrategy.
Manage large-scale instances
InstanceSet can manage up to 10,000 instances. When managing a large number of instances, you can configure the number of concurrent working nodes in the InstanceSet Controller by setting the KUBEBLOCKS_RECONCILE_WORKERS environment variable to improve processing speed.
