Foreword
Generative AI has sparked a widespread interest and catapulted the vector database market into the spotlight. Numerous vector databases have begun to emerge and catch the public's attention.
According to IDC's prediction, by 2025, more than 80% of business data will be unstructured, stored in text, images, audio, video or other formats. However, handling large-scale unstructured data storage and querying still faces great challenges.
In Generative AI and Deep Learning, the common practice is to convert unstructured data into vectors for storage, and use vector similarity search technology to perform semantic correlation retrieval. The fast storage, indexing and search of embedding are the core functions of vector databases.
So, what is embedding? Put simply, embedding is a vector representation composed of floating point numbers. The distance between two vectors represents their correlation. The closer the distance, the higher the correlation; the farther the distance, the lower the correlation. If two embedding vectors are similar, it means that the original data they represent is also similar, which is different from traditional keyword searches.
However, a vector database is complex to manage because in nature it is a stateful workload. When used in the production environment, it faces the same problems as those of traditional OLTP and OLAP databases, such as data security, high availability, vertical/horizontal scalability, monitoring and alerts, backup and restore, etc. As vector databases are relatively new, most users lack necessary knowledge, which brings great challenges to implementing LLMs + vector databases stack. Users pay more attention to the value that LLMs and vector databases bring to the business, rather than investing excessive effort into their management.
To address these problems, KubeBlocks, leveraging the declarative API of K8s, abstracts various databases in a unified manner and uses an operator and a set of APIs to manage databases, greatly alleviating the management burden. Moreover, built on K8s, KubeBlocks supports multi-cloud to avoid the risk of cloud vendors lock-in.
EKS, a managed K8s service provided by AWS, offers an easy way to run, scale, and manage K8s clusters on AWS without worrying about node deployment, upgrade and maintenance. EKS itself also supports multi-AZ deployment to offer high-availability, ensuring that the cluster remains available when node failure or Availability Zone disruption occurs. In addition, with the help of AWS robust resource pool, you can add or remove nodes on demand during business peaks and off-peaks, guaranteeing elasticity and scalability.
This blog mainly discusses how to easily deploy and manage vector databases through KubeBlocks based on Amazon EKS.
Architecture
Kubernetes has become the de facto standard for container orchestration. It leverages the scalability and availability provided by ReplicaSet and the rollout and rollback capabilities provided by Deployment to manage an increasing number of stateless workloads. However, managing stateful workloads poses significant challenges to Kubernetes. Although StatefulSet provides stable persistent storage and unique network identifiers, these capabilities are not enough for complex stateful workloads. To tackle these challenges and simplify the complexity, KubeBlocks introduces ReplicationSet and ConsensusSet, which have the following functions:
- Role-based update sequencing reduces downtime caused by upgrading, scaling, and restarting.
- Maintain the state of data replication and automatically fix replication errors or delays.

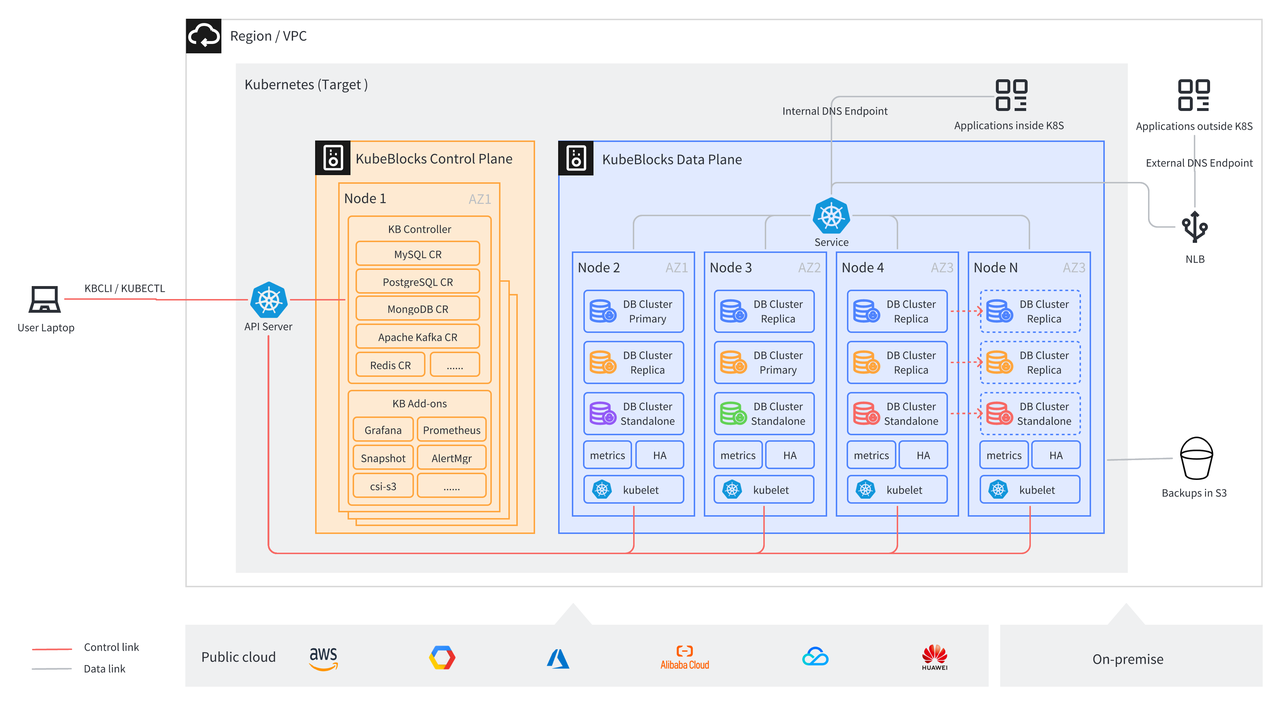

With the powerful container orchestration capabilities of Kubernetes and the unified abstraction of the database engines, KubeBlocks has the following advantages:
- Be compatible with AWS, GCP, Azure, and more.
- Provides production-level performance, resilience, scalability, and observability.
- Simplifies day-2 operations, such as upgrading, scaling, monitoring, backup, and restore.
- Contains a powerful and intuitive command line tool. It helps you set up a full-stack, production-ready data infrastructure in minutes.
The above capabilities allow us to build AIGC infrastructure, such as LLMs and vector databases, on KubeBlocks in a convenient and quick way. New databases can also be accessed very quickly. You only need to define a few CRs such as ClusterDefinition and ClusterVersion, and configure the operations scripts, parameters and monitoring panels to create a database cluster on KubeBlocks, which also supports capabilities such as parameter configuration, vertical/horizontal scaling, upgrade and downgrade, backup and restore.
The following instructions take Qdrant as an example to introduce how to set up a vector database on AWS EKS by KubeBlocks.

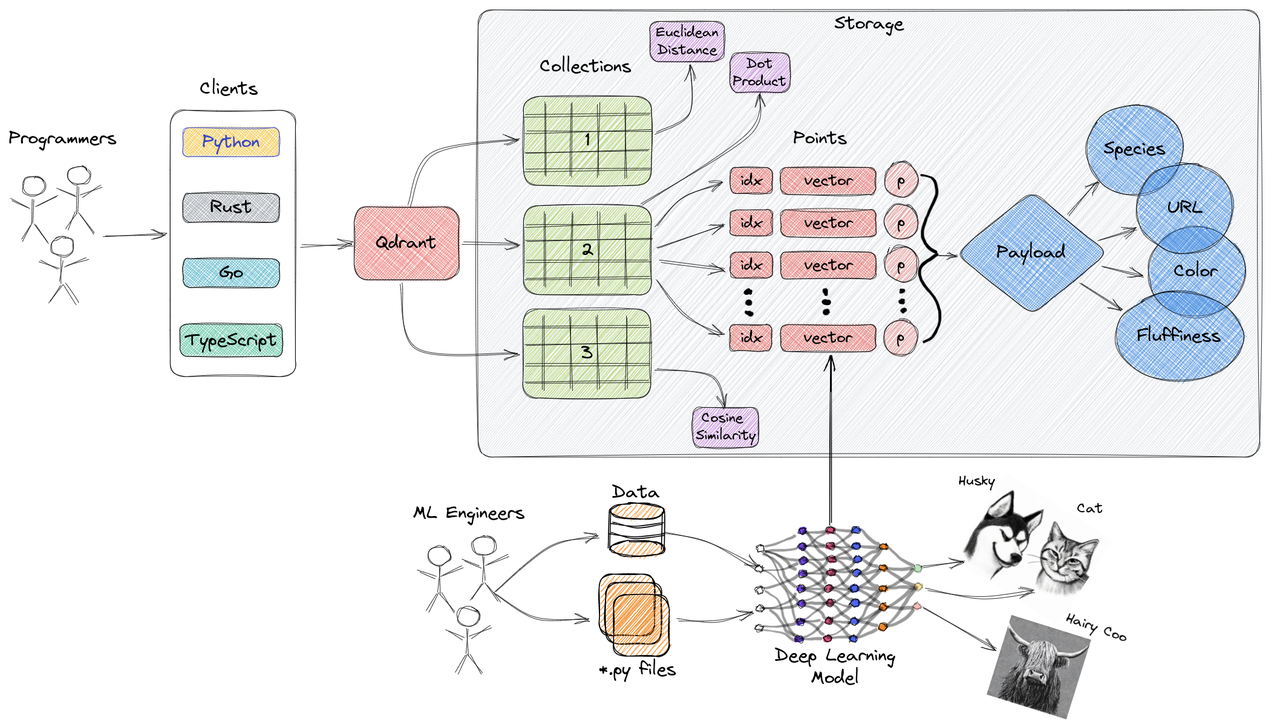

Qdrant is an open-source vector database designed to efficiently store and query high-dimensional vector data. The architecture of Qdrant can be described as follows:
Key features of Qdrant:
Storage Engine: Qdrant uses RocksDB as its storage engine. RocksDB is a high-performance key-value storage engine based on the LSM (Log-Structured Merge) tree structure, offering exceptional write and query performance.
Index Structure: Qdrant employs an index structure known as HNSW (Hierarchical Navigable Small World), which is based on the MVP (Most Valuable Point) concept. The HNSW index structure organizes vector data by building a multi-layer graph structure for fast approximate nearest neighbor search.
Vector Encoding: Qdrant supports multiple vector encoding methods, including L2, IP, Cosine, etc. These encoding techniques are used to map high-dimensional vectors to low-dimensional space for efficient similarity calculation and search within index structures.
Query Processing: Qdrant uses multithreading and parallel computing to process query requests. It works by comparing the query vector with the index structure and using the approximate nearest neighbor algorithm to find the most similar vector.
Distributed Deployment: Qdrant supports horizontal scaling and distributed deployment. It can perform data sharding and load balancing across multiple nodes to increase storage capacity and query throughput.
Overall, the architecture of Qdrant is designed to deliver efficient vector storage and query capabilities. By leveraging storage engines, index structures, vector encoding, and query processing techniques, Qdrant achieves fast and accurate approximate nearest neighbor search. It is well-suited for a range of application scenarios that involve the processing of high-dimensional vector data.
ClusterDefinition
This CR defines the ClusterDefinition of Qdrant, including parameters closely related to the engine, such as how Qdrant's services are accessed, how monitoring metrics are collected, how availability is probed.
---
apiVersion: apps.kubeblocks.io/v1alpha1
kind: ClusterDefinition
metadata:
name: qdrant
labels:
{{- include "qdrant.labels" . | nindent 4 }}
spec:
type: qdrant
connectionCredential:
username: root
password: "$(RANDOM_PASSWD)"
endpoint: "$(SVC_FQDN):$(SVC_PORT_tcp-qdrant)"
host: "$(SVC_FQDN)"
port: "$(SVC_PORT_tcp-qdrant)"
componentDefs:
- name: qdrant
workloadType: Stateful
characterType: qdrant
probes:
monitor:
builtIn: false
exporterConfig:
scrapePath: /metrics
scrapePort: 6333
logConfigs:
scriptSpecs:
- name: qdrant-scripts
templateRef: qdrant-scripts
namespace: {{ .Release.Namespace }}
volumeName: scripts
defaultMode: 0555
configSpecs:
- name: qdrant-config-template
templateRef: qdrant-config-template
volumeName: qdrant-config
namespace: {{ .Release.Namespace }}
service:
ports:
- name: tcp-qdrant
port: 6333
targetPort: tcp-qdrant
- name: grpc-qdrant
port: 6334
targetPort: grpc-qdrant
volumeTypes:
- name: data
type: data
podSpec:
securityContext:
fsGroup: 1001
initContainers:
- name: qdrant-tools
command:
- /bin/sh
- -c
- |
cp /bin/jq /qdrant/tools/jq
cp /bin/curl /qdrant/tools/curl
imagePullPolicy: {{default .Values.images.pullPolicy "IfNotPresent"}}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /qdrant/tools
name: tools
containers:
- name: qdrant
imagePullPolicy: {{default .Values.images.pullPolicy "IfNotPresent"}}
securityContext:
runAsUser: 0
livenessProbe:
failureThreshold: 3
httpGet:
path: /
port: tcp-qdrant
scheme: HTTP
periodSeconds: 15
successThreshold: 1
timeoutSeconds: 10
readinessProbe:
exec:
command:
- /bin/sh
- -c
- |
consensus_status=`/qdrant/tools/curl -s http://localhost:6333/cluster | /qdrant/tools/jq -r .result.consensus_thread_status.consensus_thread_status`
if [ "$consensus_status" != "working" ]; then
echo "consensus stopped"
exit 1
fi
failureThreshold: 2
initialDelaySeconds: 5
periodSeconds: 15
successThreshold: 1
timeoutSeconds: 3
startupProbe:
failureThreshold: 18
httpGet:
path: /
port: tcp-qdrant
scheme: HTTP
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 3
lifecycle:
preStop:
exec:
command: ["/qdrant/scripts/pre-stop.sh"]
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /qdrant/config/
name: qdrant-config
- mountPath: /qdrant/storage
name: data
- mountPath: /qdrant/scripts
name: scripts
- mountPath: /etc/annotations
name: annotations
- mountPath: /qdrant/tools
name: tools
dnsPolicy: ClusterFirst
enableServiceLinks: true
ports:
- name: tcp-qdrant
containerPort: 6333
- name: grpc-qdrant
containerPort: 6334
- name: tcp-metrics
containerPort: 9091
- name: p2p
containerPort: 6335
command: ["/bin/sh", "-c"]
args: ["/qdrant/scripts/setup.sh"]
env:
- name: QDRANT__TELEMETRY_DISABLED
value: "true"
volumes:
- name: annotations
downwardAPI:
items:
- path: "component-replicas"
fieldRef:
fieldPath: metadata.annotations['apps.kubeblocks.io/component-replicas']
- emptyDir: {}
name: tools
ClusterVersion
This CR defines a specific version of Qdrant. If there are multiple versions, make sure each version corresponds to a ClusterVersion.
apiVersion: apps.kubeblocks.io/v1alpha1
kind: ClusterVersion
metadata:
name: qdrant-{{ default .Chart.AppVersion .Values.clusterVersionOverride }}
labels:
{{- include "qdrant.labels" . | nindent 4 }}
spec:
clusterDefinitionRef: qdrant
componentVersions:
- componentDefRef: qdrant
versionsContext:
initContainers:
- name: qdrant-tools
image: {{ .Values.images.registry | default "docker.io" }}/{{ .Values.images.tools.repository }}:{{ default .Chart.AppVersion .Values.images.tools.tag }}
containers:
- name: qdrant
image: {{ .Values.images.registry | default "docker.io" }}/{{ .Values.images.repository}}:{{ default .Chart.AppVersion .Values.images.tag }}
Demo
Before you start
- Prepare an EKS cluster.
- Install kubectl and Helm clients.
Install kbcli and KubeBlocks
Install kbcli.
curl -fsSL https://kubeblocks.io/installer/install_cli.sh | bashInstall KubeBlocks.
kbcli kubeblocks installEnable Qdrant addon.
kbcli addon enable qdrant
Create a cluster
Create a Standalone Qdrant cluster.
kbcli cluster create qdrant --cluster-definition=qdrantIf there is a large amount of data, you can set the
replicasparameter to create a RaftGroup Qdrant cluster.kbcli cluster create qdrant --cluster-definition=qdrant --set replicas=3
View the cluster status and when the status is running, the cluster is created successfully.
# View the cluster list
kbcli cluster list
>
NAME NAMESPACE CLUSTER-DEFINITION VERSION TERMINATION-POLICY STATUS CREATED-TIME
qdrant default qdrant qdrant-1.1.0 Delete Running Aug 15,2023 23:03 UTC+0800You can also view the cluster details.
# View the cluster information
kblci cluster describe qdrant
>
Name: qdrant Created Time: Aug 15,2023 23:03 UTC+0800
NAMESPACE CLUSTER-DEFINITION VERSION STATUS TERMINATION-POLICY
default qdrant qdrant-1.1.0 Running Delete
Endpoints:
COMPONENT MODE INTERNAL EXTERNAL
qdrant ReadWrite qdrant-qdrant.default.svc.cluster.local:6333 <none>
qdrant-qdrant.default.svc.cluster.local:6334
Topology:
COMPONENT INSTANCE ROLE STATUS AZ NODE CREATED-TIME
qdrant qdrant-qdrant-0 <none> Running <none> x-worker3/172.20.0.3 Aug 15,2023 23:03 UTC+0800
qdrant qdrant-qdrant-1 <none> Running <none> x-worker2/172.20.0.5 Aug 15,2023 23:03 UTC+0800
qdrant qdrant-qdrant-2 <none> Running <none> x-worker/172.20.0.2 Aug 15,2023 23:04 UTC+0800
Resources Allocation:
COMPONENT DEDICATED CPU(REQUEST/LIMIT) MEMORY(REQUEST/LIMIT) STORAGE-SIZE STORAGE-CLASS
qdrant false 1 / 1 1Gi / 1Gi data:20Gi standard
Images:
COMPONENT TYPE IMAGE
qdrant qdrant docker.io/qdrant/qdrant:latest
Data Protection:
AUTO-BACKUP BACKUP-SCHEDULE TYPE BACKUP-TTL LAST-SCHEDULE RECOVERABLE-TIME
Disabled <none> <none> 7d <none> <none>
Show cluster events: kbcli cluster list-events -n default qdrant
Connect to the cluster
Qdrant provides both HTTP and gRPC protocols for client access on ports 6333 and 6334 respectively. Depending on where the client is, different connection options are offered to connect to the Qdrant cluster.
If your cluster is on AWS, install the AWS Load Balancer Controller first.
- If your client is inside a K8s cluster, run
kbcli cluster describe qdrantto get the ClusterIP address of the cluster or the corresponding K8s cluster domain name. - If your client is outside the K8s cluster but in the same VPC as the server, run
kbcli cluster expose qdant --enable=true --type=vpcto get a VPC load balancer address for the database cluster. - If your client is outside the VPC, run
kbcli cluster expose qdant --enable=true --type=internetto open a public network reachable address for the database cluster.
Test
To insert data into the Qdrant cluster, first create a Collection, named
test_collection, with a vector dimension of 4, and use Cosine distance to calculate the similarity.curl -X PUT 'http://localhost:6333/collections/test_collection' \
-H 'Content-Type: application/json' \
--data-raw '{
"vectors": {
"size": 4,
"distance": "Cosine"
}
}'Result
{"result":true,"status":"ok","time":0.173516958}View the information of the created Collection.
curl 'http://localhost:6333/collections/test_collection'Result
{
"result": {
"status": "green",
"optimizer_status": "ok",
"vectors_count": 0,
"indexed_vectors_count": 0,
"points_count": 0,
"segments_count": 2,
"config": {
"params": {
"vectors": {
"size": 4,
"distance": "Cosine"
},
"shard_number": 1,
"replication_factor": 1,
"write_consistency_factor": 1,
"on_disk_payload": true
},
"hnsw_config": {
"m": 16,
"ef_construct": 100,
"full_scan_threshold": 10000,
"max_indexing_threads": 0,
"on_disk": false
},
"optimizer_config": {
"deleted_threshold": 0.2,
"vacuum_min_vector_number": 1000,
"default_segment_number": 0,
"max_segment_size": null,
"memmap_threshold": null,
"indexing_threshold": 20000,
"flush_interval_sec": 5,
"max_optimization_threads": 1
},
"wal_config": {
"wal_capacity_mb": 32,
"wal_segments_ahead": 0
},
"quantization_config": null
},
"payload_schema": {}
},
"status": "ok",
"time": 1.9708e-05
}
Insert data into the Collection.
curl -L -X PUT 'http://localhost:6333/collections/test_collection/points?wait=true' \
-H 'Content-Type: application/json' \
--data-raw '{
"points": [
{"id": 1, "vector": [0.05, 0.61, 0.76, 0.74], "payload": {"city": "Berlin" }},
{"id": 2, "vector": [0.19, 0.81, 0.75, 0.11], "payload": {"city": ["Berlin", "London"] }},
{"id": 3, "vector": [0.36, 0.55, 0.47, 0.94], "payload": {"city": ["Berlin", "Moscow"] }},
{"id": 4, "vector": [0.18, 0.01, 0.85, 0.80], "payload": {"city": ["London", "Moscow"] }},
{"id": 5, "vector": [0.24, 0.18, 0.22, 0.44], "payload": {"count": [0] }},
{"id": 6, "vector": [0.35, 0.08, 0.11, 0.44]}
]
}'Result
{
"result": {
"operation_id": 0,
"status": "completed"
},
"status": "ok",
"time": 0.040477833
}Search for the data inserted before, for example, data similar to vector [0.2,0.1,0.9,0.7].
curl -L -X POST 'http://localhost:6333/collections/test_collection/points/search' \
-H 'Content-Type: application/json' \
--data-raw '{
"vector": [0.2,0.1,0.9,0.7],
"limit": 3
}'Result
{
"result": [
{
"id": 4,
"version": 0,
"score": 0.99248314,
"payload": null,
"vector": null
},
{
"id": 1,
"version": 0,
"score": 0.89463294,
"payload": null,
"vector": null
},
{
"id": 5,
"version": 0,
"score": 0.8543979,
"payload": null,
"vector": null
}
],
"status": "ok",
"time": 0.003061
}You can also add additional metadata filtering conditions, such as finding data similar to the vector [0.2,0.1,0.9,0.7] in points where city is equal to London.
curl -L -X POST 'http://localhost:6333/collections/test_collection/points/search' \
-H 'Content-Type: application/json' \
--data-raw '{
"filter": {
"should": [
{
"key": "city",
"match": {
"value": "London"
}
}
]
},
"vector": [0.2, 0.1, 0.9, 0.7],
"limit": 3
}'Result
{
"result": [
{
"id": 4,
"version": 0,
"score": 0.99248314,
"payload": null,
"vector": null
},
{
"id": 2,
"version": 0,
"score": 0.66603535,
"payload": null,
"vector": null
}
],
"status": "ok",
"time": 0.012462584
}
Scale the cluster
KubeBlocks supports both vertical and horizontal scaling. If you create a Standalone cluster first, but later find that the capacity is not enough and needs to be scaled, you can vertically or horizontally scale your cluster.
Vertical scaling adds CPU and memory resources.
kbcli cluster vscale qdrant --components qdrant --cpu 8 --memory 32Gi
If the vertical scaling has reached the upper limit of the machine, you can vertically scale a cluster to add nodes, for example, scale from a Standalone to a RaftGroup.
kbcli cluster hscale qdrant --replicas 3
